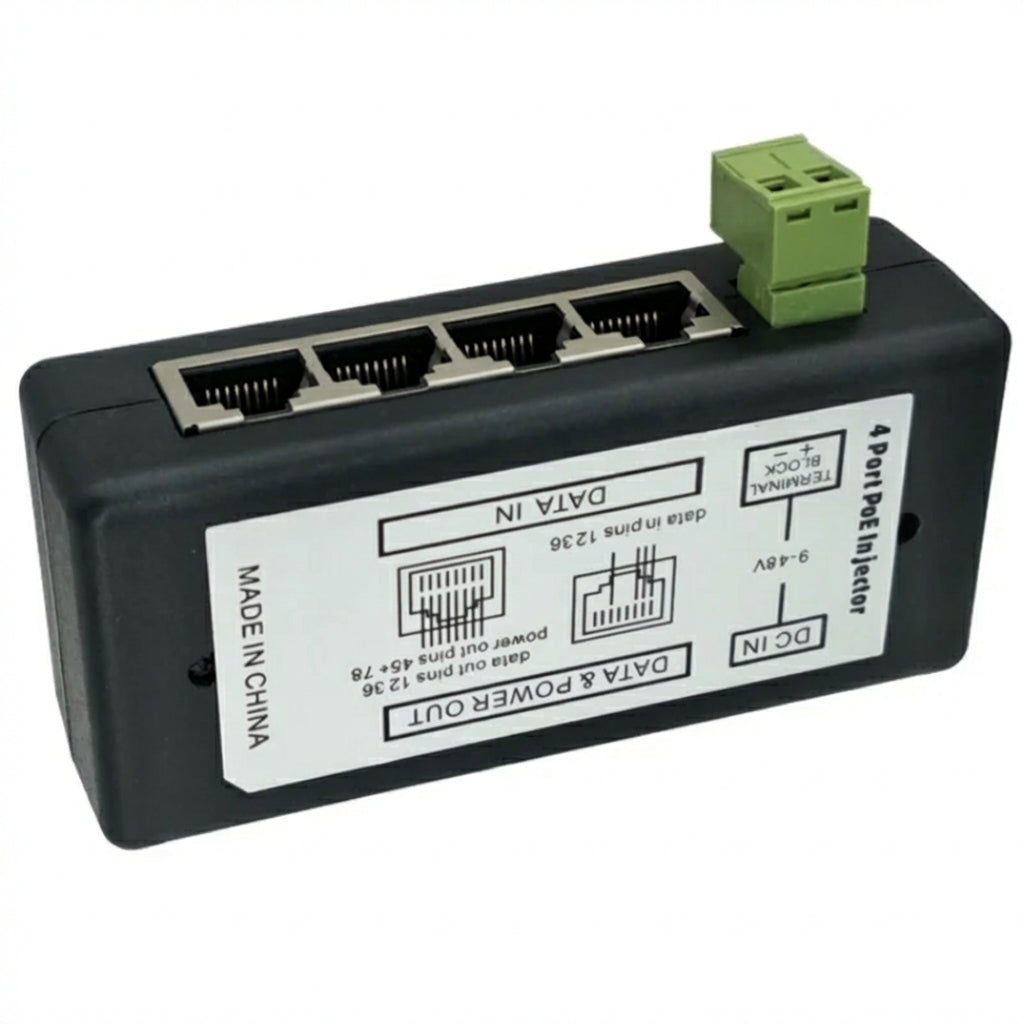

4-Port Passive PoE Injector Module – DC 9–48V for IP Cameras & Access Points

Overview

This 4-port passive Power over Ethernet (PoE) injector lets you supply power and data over a single Ethernet cable, powering up to four devices remotely up to 100 metres (328 ft). It adds PoE capability to any existing switch or router without replacing your network gear.

Simple to install and manage

Connect a suitable DC supply (9–48V) to the 2.1 × 5.5mm jack, then plug in your CAT-5/6/7 cables — power is injected on pairs 4/5 and 7/8 while data uses pairs 1/2 and 3/6. Centralise power for IP cameras, VoIP phones and Wi‑Fi access points and reboot all four devices from one location.

Key technical details

Supports 10/100 Mbps Ethernet with RJ45 connectors and includes an LED power indicator. Each port has a 650 mA resettable fuse; output current range is 0.5–3A depending on your supply. Operating range: 0°C–50°C, storage −40°C–70°C, humidity 10%–80% RH. Package includes one 4-port PoE injector module.

• Injects power into four Ethernet cables (4 LAN+Power ports)
• Compatible with any Ethernet switch or router
• Accepts DC input 9–48V via 2.1×5.5mm jack
• 650 mA resettable fuse on each port
• Supports up to 100 metres (328 ft) over Cat5/6/7
